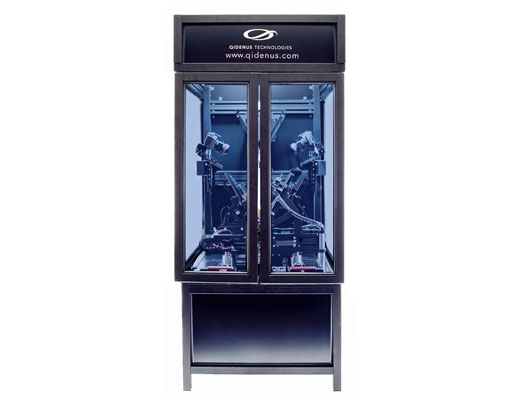

Qidenus Robotic Book Scanner

TownsWeb Archiving – Exclusive UK Reseller of the Qidenus Robotic Book Scanner

TownsWeb Archiving has long been established as a market leader in the world of specialist digitisation, and now with our exclusive partnership with Qidenus Technologies we are able to bring to the UK market new and innovative technology that will digitise books with incredible speed and accuracy.

Please don´t hesitate to use the contact button if you have any questions or enquiries.

7 Books Per Hour, Fully Automatic

With QiScan RBSpro, the operator can fully automate the digitisation of a book in less than 15 minutes.

This innovative technology opens up new possibilities for users to permanently store old scripts and books and to make them accessible and searchable through the internet with it´s implemented technologies such as optical character recognition (OCR).

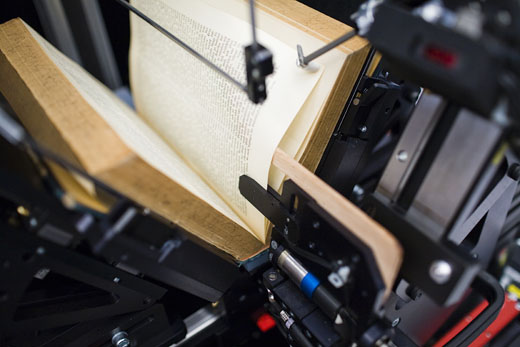

During the development of the QiScan RBSpro, special attention was paid to realising a gentle page turning mechanism while creating a workflow that has the greatest possible efficiency and the lowest labour input.

You place the book inside and the QiScan RBSpro takes care of the rest.

Technical Specifications

Dimensions:
Height 1.8 m / base area 0.88 m * 0.95 m
Page capacity / hour:
Theoretically 1.500
Practically 1.300 including double sheet control
Image quality:
300 – 600 DPI (depending on the used type of camera)
Optical system:
Compatible with all Canon EOS DSLR models as well as high performance industrial cameras

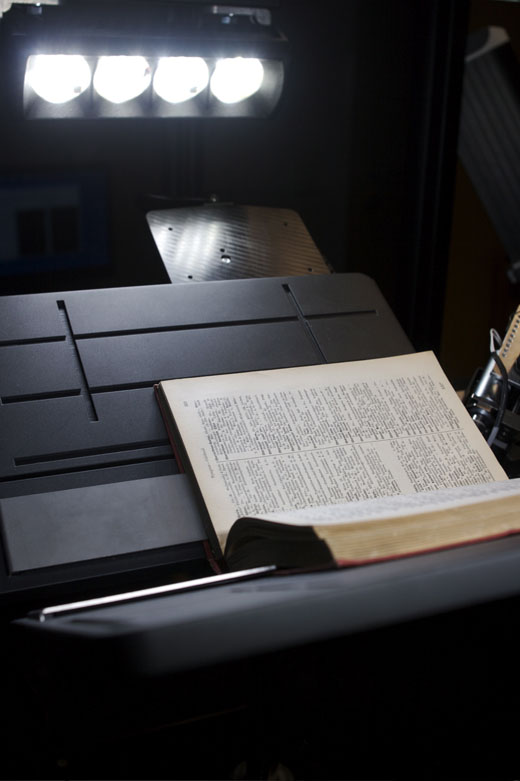

Lighting system:
Energy saving LED cold light system
Software:
Supports all standards and formats (XML, PDF/A, OCR (also fracture), JPEG 2000, GIF, TIFF, RAW)
Book cradle:
Variable aperture angles of 120° / 90° / 60°

Characteristics Qiscan Rbspro

Especially inexpensive industrial digitisation
Configuration possibilities as individual as the customer
Simple operation and intuitive user interface
The software and hardware can be integrated in any complex workflow without any problems through standardised interfaces and offers diverse import and export functions
Completely dust-free overpressure casing
Works WITH and WITHOUT glassplate
“Start and forget” technology:
The machine works closed and fully automatic but still allows user interaction if necessary
Set-up time less than 1 minute due to intelligent workflow

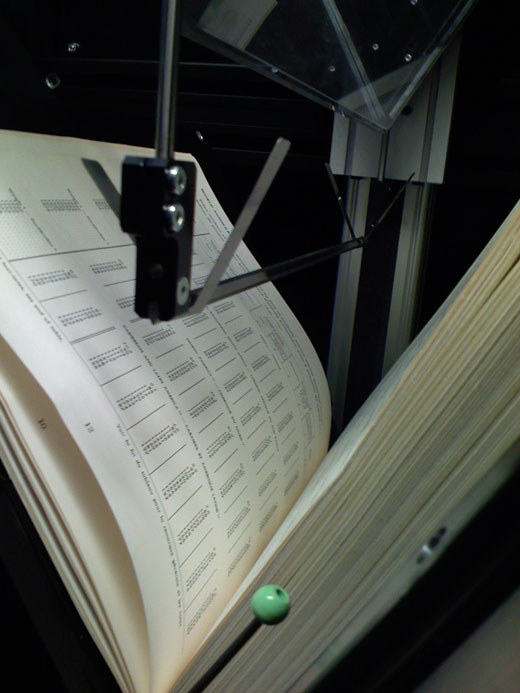

Page turning is more gentle than human hand
